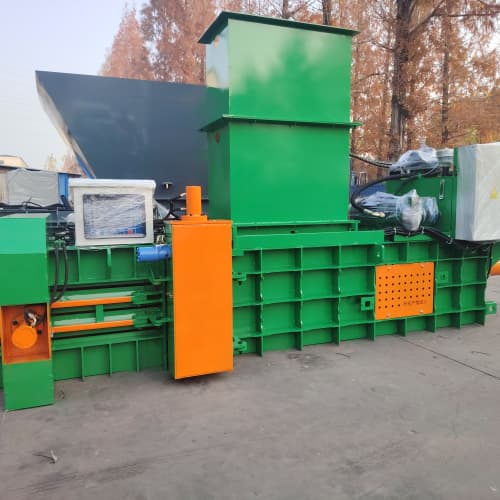

Horizontal baler machine with continuous feeding design for large-volume waste materials. Strong compression power, auto bale discharging, matches long-term recycling and packaging factory work.
Continuous High-Volume Processing: Designed with a massive 1400*1100mm feed inlet, allowing continuous bulk feeding via conveyor belts or forklifts to achieve an output of 4–6 heavy bales per hour.
Dual-Control Operation System: Powered by a reliable Xinjie PLC control box, operators can switch seamlessly between precision button controls and remote operations for maximum workplace flexibility.
Hydraulic Joystick Door & Ejection: Features a heavy-duty hydraulic discharge door controlled safely via joystick, coupled with a main cylinder ($250\text{ mm}$ bore) push-bag system for effortless bale unloading.
Industrial-Grade Water Cooling: Driven by a robust 22 KW motor, the integrated water-cooling system prevents hydraulic oil from overheating, ensuring 24/7 stable execution under high-pressure conditions.
| Technical Specifications | |
|---|---|
| Specification | Technical Data |
| Nominal Pressure | 80 T |
| Automation Level | Automatic pressing & pushing, manual threading and binding |
| Bale Size | L1700 × W1100 × H850 mm |
| Bale Weight (Cardboard) | 650 - 750 kg |
| Bale Weight (PET Bottles) | 400 - 500 kg |
| Feed Inlet Size | 1400 × 1100 mm |
| Main Cylinder Spec | 250 mm × 2800 mm |
| Output Method | Cylinder automatic bag pushing |
| Working Efficiency | 4 - 6 bales/hour |
| Motor Power / Voltage | 22 KW / 380V 50HZ 3 Phase |
| Machine Dimensions | L7200 × W2000 × H2600 mm |
| Total Machine Weight | 8000 kg |

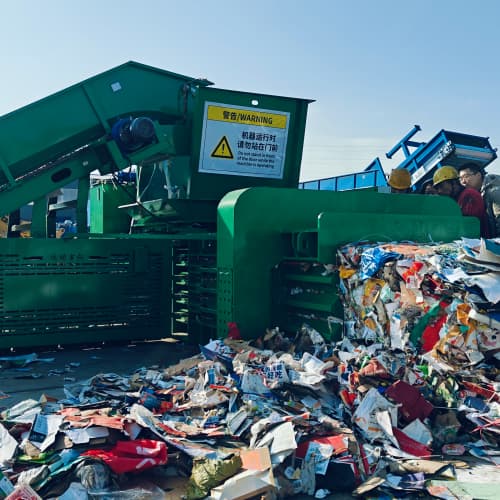

Bulk Feeding: Materials are continuously fed into the 1400mm wide inlet.
PLC Compressing: The 80T hydraulic ram cylinder moves forward horizontally to compress waste under PLC precision limits.
Manual Binding: Once the bale length reaches 1700mm, the operator threads and binds the wire paths manually.
Hydraulic Ejection: The operator opens the hydraulic gate via joystick, and the ram cylinder pushes the finished 750kg bale out automatically.
