Model number: FM-5540 Power: 3.8kw
2 in 1 shrink wrapping machine integrates sealing and heat shrinking in one unit. Simple structure, adjustable heat temperature and conveyor speed, suitable for daily chemical, food and hardware bundled packaging.
2 in 1 Shrink Wrapping Machine is a highly efficient, space-saving packaging solution that seamlessly combines the film sealing and thermal shrinking processes into a single, synchronized operation. Featuring an intuitive transparent chamber hood, operators can visually monitor the entire packaging cycle in real-time. Designed to run on a standard 220V power supply and compatible with centrally-folded POF or PVC films, this mobile system is the ultimate choice for small-to-medium enterprises, retail gift wrapping, cosmetics, and book publishing seeking premium presentation without large-scale line investments.
| Technical Specifications | |
|---|---|
| Technical Parameter | Specification Value |
| Model | FM-5540 |

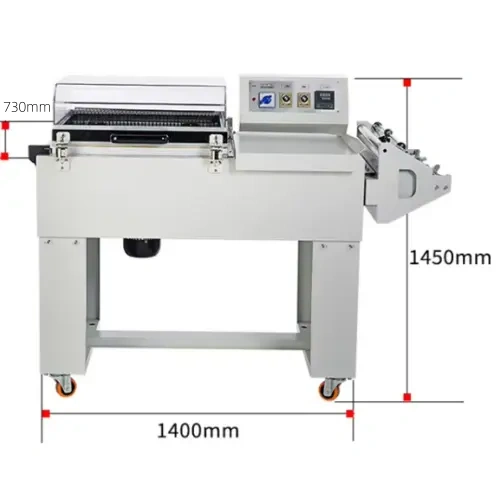

| Machine Dimensions | 1400 × 730 × 1450 mm (L × W × H) |
| Maximum Packing Size | Length ≤ 450mm, Width ≤ 330mm, Height ≤ 150mm |
| Maximum Sealing Dimension | (L)500 × (W)400 mm (L-type sealing frame) |
| Packing Throughput | 500 - 800 pcs / hour (High-frequency manual discharge) |
| Compatible Material | POF / PVC (Adopt full-size centrally-folded film) |
| Electrical & Power | 3.8 kw / 220V 50HZ (Single-phase power for household & commercial use) |
| Chamber Optimization | Adjustable chamber height with built-in supporting mesh tray |
| Net Weight | 130 kg (Heavy-duty stable industrial frame) |
The defining advantage of the 2-in-1 system is its immediate dual action: when the operator presses down the transparent hood, the magnetic lock engages, and the film is simultaneously sealed and blasted with recirculating hot air. This localized cycle completes both steps in seconds. The crystal-clear organic hood lets you monitor the shrinking quality instantly, preventing any trial-and-error film burning.
The L-shaped cutting system incorporates a professional-grade Teflon coated sealing blade. The premium industrial non-stick coating effectively isolates the molten POF/PVC plastics during the high-heat slice, preventing sticky carbon deposits, smoking, or thread-pulling. This design ensures every single edge is micro-welded cleanly, ensuring a smooth, retail-ready seam.
The inner wire mesh conveyor platform inside the chamber features a height-adjustable framework. This flexibility ensures that whether you are wrapping flat photo frames or thick, tall medicine boxes, the object remains perfectly centered in the convective airflow. Supported by heavy-duty casters, the entire 130kg chassis offers extreme mobility and portability, allowing you to wheel it effortlessly between different packing benches.
