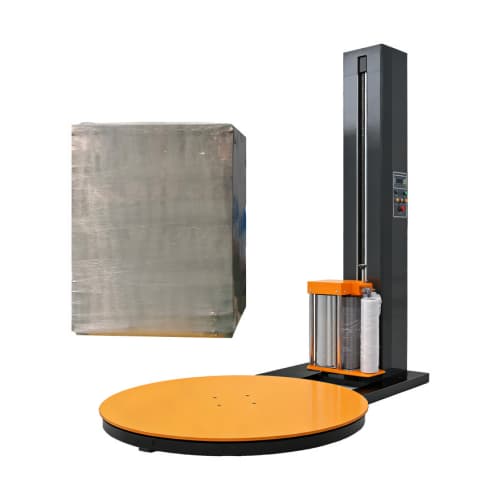

This pallet wrapper applies stretch film to secure pallet loads, suitable for general cargo bundling in warehouses.
Designed to secure palletized loads for transit and storage, this versatile stretch film pallet wrapper binds goods and pallets into a single unit. It effectively prevents moisture, dust, and transit shifting while cutting your stretch film consumption by up to 250% thanks to its advanced pre-stretch carriage system.
250% Powered Pre-Stretch Carriage
The integrated power pre-stretch unit automatically feeds film and stretches it up to 2.5 times before applying it to the load. This significantly increases film yield, allowing you to wrap more pallets per roll while maintaining high load containment force.
Balanced Turntable & Smooth Operation
Equipped with a 1650mm heavy-duty turntable running at 0–15 rpm, the machine utilizes inverter controls to guarantee steady acceleration and deceleration, preventing loose cartons or unstable stacks from tipping over.
Lower Packaging Cost Per Pallet
By pairing automatic film transport with structural stability, businesses can reduce manual labor fatigue and drastically lower the total cost per wrapped pallet across daily logistics operations.
| Technical Specifications | |
| Parameter | Value / Specification |
| Wrapping Product Size | L(500-1200) mm × W(500-1200) mm |
| Wrapping Height | L type: 1800mm / H type: 2400mm / Y type: 2800mm |
| Packing Efficiency | 20-40 pallets/h |
| Rotary Speed | 0-15 rpm (Rotary speed adjustable, steady start and stop) |
| Turntable Size | Diameter: 1650mm / Height: 78mm |
| Turntable Weight Capacity | 2000 kg |
| Film Carriage System | Pre-stretch film carriage, pre-stretch up to 250%, automatic transport film |
| Up & Down Upright | Double chain structure, speed adjustable by transducer |
| Control System | PLC Programmable |
| Motor Power | Turntable 0.75kW / Film Carriage 0.4kW / Upright 0.37kW |
| Machine Weight / Size | 700 kg / 2745mm × 1650mm × (2260-3260) mm |
| Certifications | CE Certified, One-Year Warranty |
Compatible Pallets & Loads : Standard Euro pallets, US pallets, bulk wooden cases, stacked corrugated cartons, and bagged raw materials. (
