Model number:T1650F-A
Pallet wrapping machine with film cutting system used to wrap pallet loads with stretch film and automatically cut the film at the end of the cycle, improving efficiency and ease of operation in warehousing and logistics applications.
Not only does this slow down your shipping dock, but trailing film tails can also trigger safety alarms in modern high-rack storage facilities. Automatic wrapping machine features a heavy-duty pneumatic film clamping and cutting system. It completely mechanizes the end-of-cycle cutting process, allowing your facility to reach a reliable throughput of 20 to 40 pallets per hour without manual labor strain.

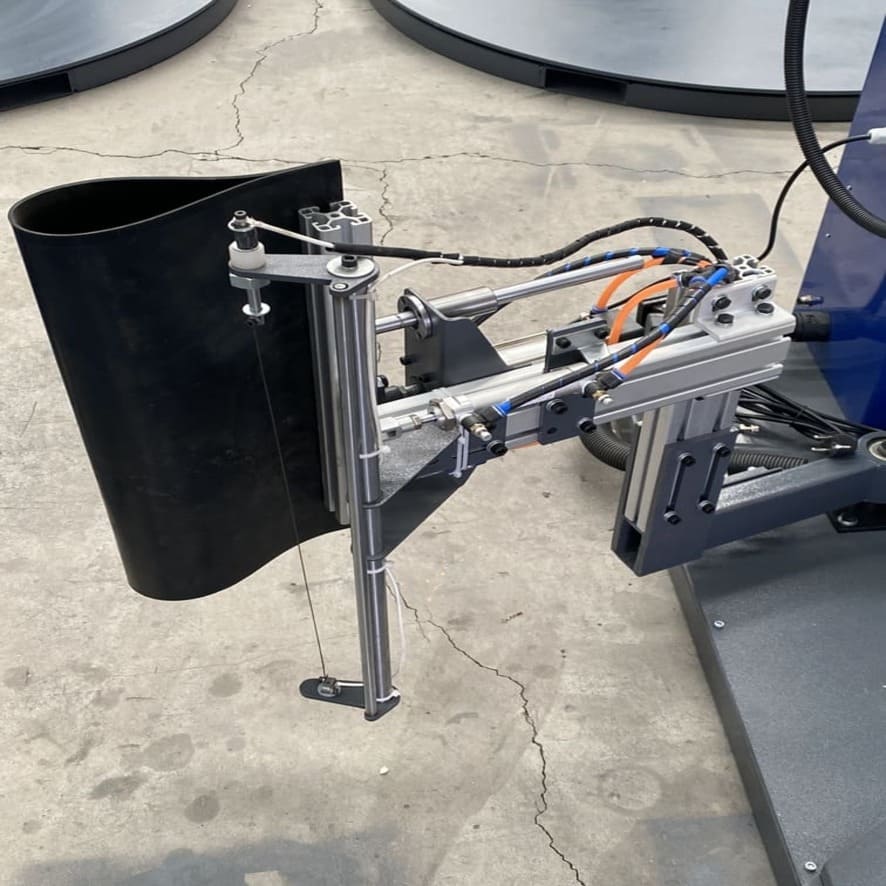

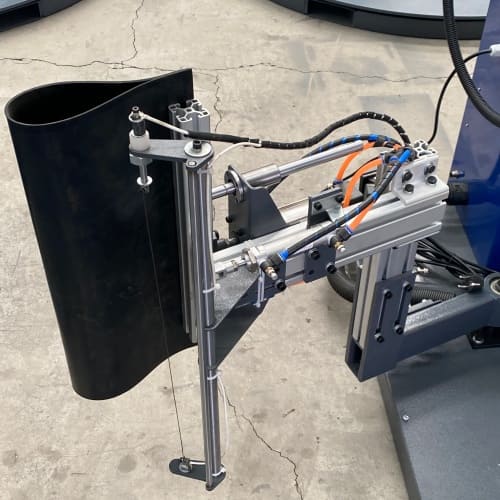

Reliable Air Drive: Operating on a standard 0.6~0.8Mpa pneumatic system, the integrated mechanical arm instantly clamps, cuts, and wipes the film tail onto the pallet at the end of the cycle.
Warehouse Safety Compliant: Eliminates loose, dragging plastic wrap tails, ensuring your wrapped pallets flow smoothly through automated conveyor sorting lines and high-rack forklift placements without catching.
High-Throughput Return: Engineered for mid-to-large logistics setups, the system delivers a stable output of 20~40 pcs/h (pieces per hour), synchronizing perfectly with your daily multi-shift logistics schedules.
Variable Rotation Contro: The 1650mm turntable features an adjustable speed from 0~12rpm, allowing you to slow down for top-heavy industrial parts or accelerate for standardized stable carton loads.
Triple Motor Engineering: Built with a massive net machine weight of 700kg, the structural durability is driven by 3 independent motors: Turntable 0.75kw, Film carriage 0.4kw, and Column 0.37kw.
Powered Pre-Stretch System: The PLC-programmed pre-stretch film carriage stretches the film efficiently before application, guaranteeing maximum holding force while dramatically dropping your film budget.
| Technical Specifications | ||
|---|---|---|
| Feature Item | Specification Data | Engineering Notes |
| Wrapping Product Size | L(500–1200)mm × W(500–1200)mm | Fits standard global export pallets seamlessly |
| Wrapping Efficiency | 20 ~ 40 pcs/h | Scalable outbound throughput for active logistics |
| Turntable Rotary Speed | 0 ~ 12rpm, Speed adjustable | Variable frequency inverter control for cargo safety |
| Turntable Size & Load | 1650mm / 2000kg Capacity | Robust platform built for heavy industrial pallets |
| Film Carriage System | Pre-stretch film carriage | Powered pre-stretching to reduce plastic consumption |
| Pneumatic System Req. | 0.6 ~ 0.8Mpa (1000ml/min) | Drives the automatic cutting and clamping mechanism |
| Motor Power System | Turntable 0.75kw / Carriage 0.4kw / Column 0.37kw | Individual motor distribution prevents system fatigue |
| Machine Weight & Size | 700kg / 2745mm × 1650mm × (2260–3260)mm | Heavy physical infrastructure prevents operational shaking |
