Robust pallet wrapping unit built for continuous industrial operation to wrap heavy palletized goods.

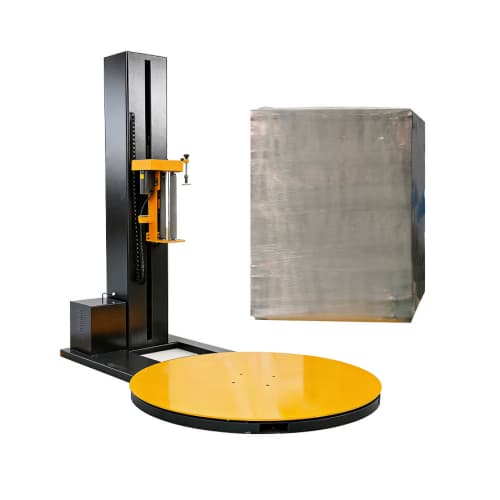

Built for tough industrial environments, the Industrial Stretch Film Pallet Wrapping Machine handles heavy, bulky, and tall palletized shipments up to 2,000 kg. Featuring a robust structural frame, a choice of extended upright heights, and a dual-chain lifting system, it gives heavy manufacturers absolute packaging reliability under rigorous long-hour operations.
2,000 kg Load Capacity Turntable The reinforced 1650mm turntable platform with a low 78mm profile is designed to sustain continuous heavy impacts from loaded forklifts and pallet jacks. It reliably rotates payloads up to 2000 kg without speed variance or mechanical fatigue.
Double Chain Upright & Extended Height Options Unlike single-belt wrappers, our industrial column utilizes a heavy-duty double chain structure to move the film carriage up and down safely. Choose from three upright height configurations to match your exact ceiling and cargo demands:
L Type: Up to 1800mm wrapping height
H Type: Up to 2400mm wrapping height
Y Type: Up to 2800mm wrapping height
Industrial Grade Durability & Low Maintenance
Weighing 700 kg, the solid machine mass dampens operational vibrations. Key drive components are readily accessible for standard industrial maintenance, ensuring long tool life even in high-dust packaging plants like ceramic or cement factories.
| Technical Specifications | |
| Parameter | Value / Specification |
| Max Payload Weight | 2000 kg Heavy-duty Type |
| Wrapping Height Options | L type: 1800mm / H type: 2400mm / Y type: 2800mm |
| Upright Lifting Mechanism | Double chain structure, transducer speed control |
| Turntable Specs | Diameter: 1650mm / Height above floor: 78mm |
| Wrapping Pallet Size Range | L(500-1200) mm × W(500-1200) mm |
| Film Carriage | Pre-stretch carriage (up to 250%), powered film auto-transport |
| Rotation Speed | 0-15 rpm, steady start and stop |
| System Controls | Programmable PLC System |
| Motor Specifications | Turntable: 0.75kW / Film Carriage: 0.4kW / Upright: 0.37kW |
| Total Machine Weight / Dimensions | 700 kg / 2745mm × 1650mm × (2260-3260) mm |
| Build Certification | CE Certified, Customization Available, 1-Year Warranty |
Heavy Industry Focus : Construction materials (tiles, cement, bricks), hardware & metallic tools, chemical containers, bulk paper rolls, and refractory materials.
Heavy-Duty Packaging Compatibility: High-micron stretch film, anti-puncture heavy-duty wrap, UV-resistant stretch film.
