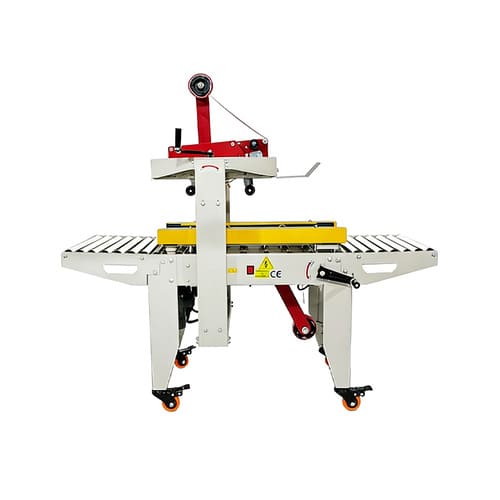

Carton box sealing machine used to automatically tape the top and bottom of cartons, improving sealing efficiency and consistency, widely used in e-commerce warehouses, logistics sorting, and packaging lines.
Designed for high-efficiency batch packaging, this Carton Box Sealing Machine provides synchronized top and bottom adhesive tape sealing. Utilizing robust side drive belts, the machine smoothly guides various carton sizes through the sealing head, eliminating the wrinkles and inconsistencies common with manual taping. It is an ideal, budget-friendly upgrade for e-commerce warehouses and logistics sorting lines.
| Technical Specifications | |
|---|---|
| Parameter | Specification |
| Max. Wrapping Size | L: ∞ (Unlimited) × W: 500 × H: 600 mm |
| Min. Wrapping Size | L: 150 × W: 180 × H: 150 mm |
| Suitable Tape Size | W: 48mm / 60mm / 75mm (Choose any one) |
| Drive Method | Dual Side Drive Belts |
| Power Supply | 220V / 380V, 50Hz, 240W |
| Machine Size | L1020 × W850 × H1450 mm |
| Machine Weight | 130 Kg |

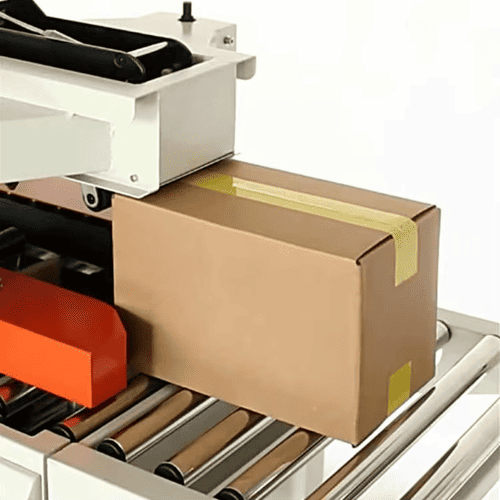

Driven by dual heavy-duty motors and high-friction side belts, the machine ensures stable, non-slip carton feeding. The integrated clamp stick and carton positioning wheels prevent the box from shifting or tilting during high-speed sealing, ensuring perfectly centered tape lines every time.
When changing box sizes, operators can quickly adapt the machine using the top lifting handle (for height) and the front locking handwheel (for width). The adjustment takes less than a minute, making it highly efficient for uniform batch production runs.
The machine features open tape cartridge holders on both top and bottom. Tape tension is easily adjustable to prevent tearing or snapping. The modular design allows operators to swap empty tape rolls in seconds, reducing line downtime.
Extended Roller Tables: Comes with durable front and rear conveyor tables for smooth carton transit.Lockable Casters: Equipped with heavy-duty casters for effortless mobility around the warehouse; can be locked securely in place or integrated directly into existing conveyor lines.
Want to speed up your dispatch operations?
Let us know your most frequently used carton sizes and tape widths (48mm,60mm,or 75mm), and we will configure the perfect case sealer setup for you.
