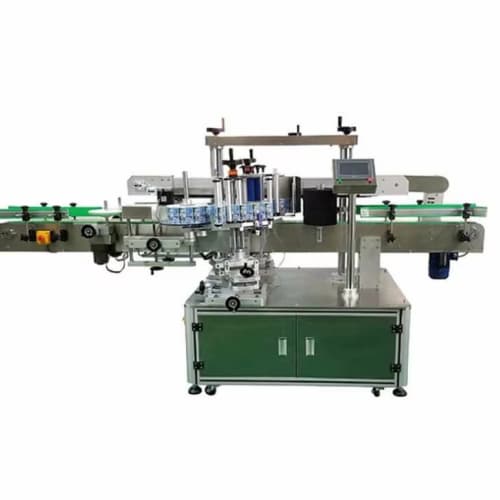

Automatic double‑sides labeling machine applies labels on both sides in a single run. Stable conveying ensures aligned labeling, suitable for inline processing of various flat bottles and boxed goods.
Engineered for flat, oval, square, and large-curved containers, this automatic double-sided labeling machine ensures accurate dual-face label application. Utilizing a dual-drive mechanism, both dispensing heads operate independently. Integrated vertical (“up and down”) and horizontal (“left and right”) adjustment wheels allow technicians to micro-calibrate labeling head angles to match bottle contours, delivering 1 mm placement accuracy at speeds up to 200 pcs/min.
Dual-Drive Independent Dispensing: Twin drive heads function separately, allowing simultaneous application of asymmetrical front and back labels (Length 15–250mm, Width 15–150mm).
Multi-Axis Handwheel Calibration: Mechanical adjustment wheels provide precise alignment for tapered or curved surfaces, preventing air bubbles and misalignments.
Broad Container Size Range: Accommodates bottle formats with lengths of 20–300mm, widths of 30–90mm, and heights up to 60–360mm.
Stainless Steel Mobile Chassis: Constructed with a heavy-duty stainless steel frame and lockable universal wheels, meeting food and commodity packaging requirements.
| Specification | Details |
| Labeler Type / Drive System | Double Sides / Dual Drive Electric |
| Speed / Placement Accuracy | 40 - 200 pcs/min / 1mm |
| Acceptable Bottle Range | L: 20–300mm / W: 30–90mm / H: 60–360mm |
| Acceptable Label Range | L: 15–250mm / W: 15–150mm |
| Label Roll Compatibility | Inner Core 76mm / Outer Diameter 280mm |
| Build Material & Mobility | Stainless Steel Body / Universal Wheels |
| Power Supply & Machine Weight | 220V, 50Hz / 240 kg |
