Secondary packaging for beverage and pharmaceutical lines—especially large infusion bottles, mineral water, and soft drinks—demands a difficult balance between structural stability and total cost per unit. While traditional corrugated cartons provide protection, they increase material costs, demand more storage space, and add weight to outbound shipping freight.
This is why cuff-type (sleeve) shrink wrapping has emerged as the preferred bundling method for high-volume production. By understanding the core mechanics of sleeve shrink wrapping, plant managers can eliminate packaging bottlenecks, protect goods from tamper hazards, and maintain flawless shelf presentation.
1. The Challenge of Grouping Heavy & Multi-Row Containers
Bundling single, double, or multi-row configurations of rigid containers presents specific physical challenges. Loose grouping causes shifting during transit, leading to scuffed labels or crushed bottles. Traditional full-overwrap machines can also be overly complex for standard bullseye/sleeve bundling applications.
A robust cuff-type sleeve sealing approach wraps plastic film tightly around the perimeter, leaving side openings while forming a high-tension band. This tight grip holds heavy liquid containers securely together, preventing internal shifting without requiring unnecessary excess film.
2. What to Evaluate Before Selecting a Sleeve Shrink Sealer
Before integrating a new sleeve shrink system into an active packaging line, evaluate these key operational requirements:
- What are the minimum and maximum bundle package dimensions?
- What film material (PE, POF, PVC, or PP) fits your puncture-resistance needs?
- What cutter length is required to clear your widest multi-row layout?
- What pneumatic pressure supply is available at your packaging facility?
- How will the machine integrate with upstream bottle dividers and conveyors?
Establishing these metrics early ensures smooth throughput and prevents sizing conflicts during full-capacity production runs.
3. Cleanliness, Anti-Theft Protection, and Visual Transparency
Properly film-wrapped products do more than just bundle items together. High-clarity shrink films safeguard goods against ambient dust, moisture, and transport grime, keeping consumer goods clean and shelf-ready right out of the master case.
Additionally, tight shrink wrapping provides a strong anti-theft and tamper-evident barrier. Because individual bottles cannot be removed without tearing the outer film casing, inventory loss during distribution and warehousing is significantly reduced.
4. Film Versatility and Sealing Precision
Not all packaging projects use the same polymer gauge or material type. Heavy infusion bottle bundles may require thicker PE film for high tensile strength, while lighter beverage multipacks might run on cost-effective POF or PP films.
A versatile sealer equipped with a long-reach cutting blade and wide film roll capacity allows plant engineers to switch film types smoothly without sacrificing seal strength or heat-cutting clean lines.

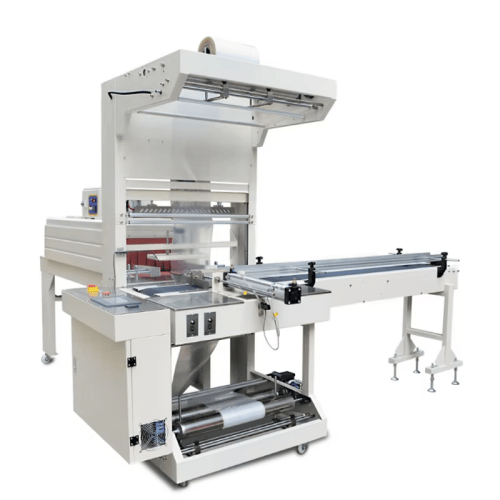

5. Introducing Our Sleeve Shrink Wrapping Machine
Specifically engineered for large infusion bottles, beverage containers, and multi-row commodity packaging, our cuff-type Sleeve Shrink Wrapping Machine delivers tight, transparent, and secure bundling. Designed with PLC control and durable electric drive components, it ensures high efficiency and reliable continuous operation across demanding production environments.
Featuring a generous 600 mm cutter length and supporting max film widths up to 550 mm, this unit accommodates bundle sizes up to 450(L) × 270(W) × 330(H) mm. It handles a wide spectrum of film choices—including PE, POF, PVC, and PP—with film thicknesses ranging from 0.03 to 0.25 mm.
Operating on a 220V power supply with a low 1.3 kW power consumption and standard pneumatic working pressure (0.3–0.5 MPa / 5–7 kgf/cm²), this compact 300 kg machine integrates smoothly into food, beverage, apparel, and hardware secondary packaging lines.
6. Key Technical Specifications
| Specification Parameter | Technical Details |
|---|---|
| Equipment Name | Sleeve Shrink Wrapping Machine |
| Driven / Operation Type | Electric / Automatic (PLC Controlled) |
| Voltage / Power | 220V, 50Hz / 1.3 kW |
| Max Packing Size | 450(L) × 270(W) × 330(H) mm |
| Min Packing Size | 250(L) × 60(W) × 140(H) mm |
| Cutter Length | 600 mm |
| Max Film Width / Thickness | 550 mm / 0.03–0.25 mm |
| Compatible Film Materials | PE, POF, PVC, PP |
| Working Pressure | 0.3–0.5 MPa (5–7 kgf/cm²) |
| Machine Weight / Dimension | 300 kg / 915(L) × 1170(W) × 1990(H) mm |
7. Optimize Your Secondary Packaging Line Today
If loose multi-packs, high carton costs, or slow bundle preparation are affecting your line’s overall equipment effectiveness, a dedicated sleeve shrink sealer offers a proven solution. Backed by a 24-month warranty, machinery test reports, and full video technical support, our equipment ensures high stability with low long-term maintenance costs.
Request a Quote or Film Test Run
Send us your product dimensions, required row configurations, and film preferences. Our technical team will provide a tailored machinery configuration, demonstration video, and competitive factory-direct quote.
