Portable manual strapping tool for plastic. Lightweight body, easy tension control, ideal for small warehouse and outdoor cargo bundling.

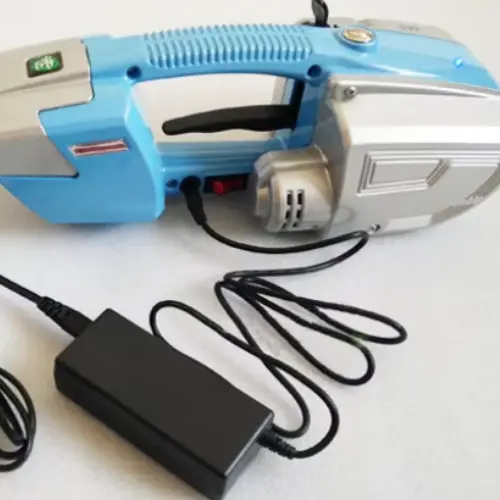

The JD13/16 Handheld Electrical Strapping Tool is a premium, battery-powered portable solution designed to streamline the bundling of heavy industrial goods and pallets. Weighing just 3kg, this mobile poly band wrapper completely replaces tedious manual tensioners and separate sealing metal crimps. By combining an advanced brushless motor with intelligent high-frequency Friction Welding technology, it secures 13-16mm PET or PP plastic-steel straps with a clean, hardware-free melt joint in seconds. It is the ultimate tool for logistics yards, metal steel stockists, timber mills, and textile warehouses requiring maximum operational flexibility.
| Technical Specifications | |
|---|---|
| Technical Parameter | Specification Value |
| Product Name | Handheld Electric Strapping Tool |
| Model Number | JD13/16 |
| Machine Weight | 3.0 kg (Tool body: 2.7kg / Detachable Battery: 0.35kg) |
| Maximum Tightening Force | 650 - 2500 N, adjustable via control knob |
| Sealing & Bonding Method | High-frequency friction welding without buckle |
| Strap Material Compatibility | PET plastic steel strap & PP strap |
| Strap Dimensions | Width: 13 - 16 mm / Thickness: 0.4 - 1.2 mm |
| Battery Life | 90 min quick charge, completes 100 - 250 strapping cycles per full charge |
| Charging Voltage | 220V, 50Hz standard mains socket |
| Overall Dimensions | 325 × 130 × 140 mm |

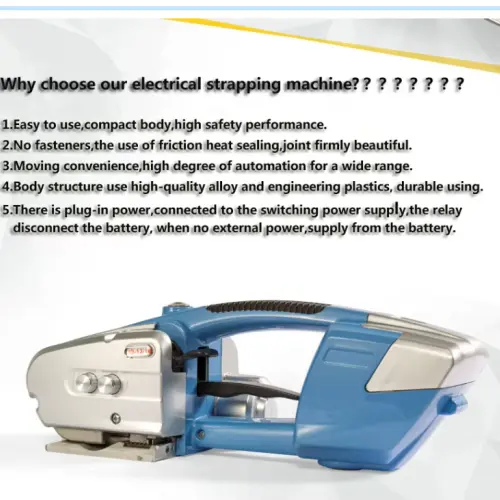

Say goodbye to purchasing and storing ongoing metal clips or buckles. The JD13/16 features a precise friction welding module. Once the overlapping strap joints are placed in the working slot, the motor drives high-frequency oscillation to generate friction heat, fusing the plastic-steel belt molecular structure together seamlessly. The tool automatically cuts the tape at the end, yielding a flat, high-tensile seam that wont scratch products or snap under high impact.
Despite its compact 325mm chassis, the tool houses a heavy-duty motor capable of scaling tightening force from 650N up to a massive 2500N. Managed via an adjustable parameter wheel, users can scale down the tension to avoid distorting fragile paper and textile bundles, or ramp it up to the maximum to cinch down heavy steel coils, construction bricks, or farm lumber stacks.
Engineered for all-day operational use, the tool balances weight beautifully at just 2.7kg for the body. Equipped with a 0.35kg snap-in lithium battery pack, the total 3kg form factor minimizes forearm fatigue during overhead or horizontal wrapping angles. The smart energy system charges fully in a quick 90 minutes, providing continuous endurance to apply 100 to 250 straps per charge.

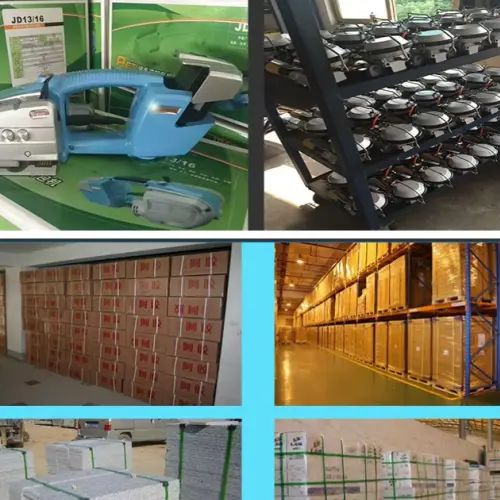

Logistics & Warehousing: Quick pallet containment directly on delivery trucks or outside loading bays without nearby power outlets.
Steel & Meta Works: Securing circular aluminum profiles, rebar bundles, and sheet metal plates safely.
Paper & Print Houses: Wrapping large stacked corrugated flatboards, magazines, and export shipments without strapping slack.
Ready to free your operators from heavy hand-tools and messy metal buckles?
Contact our portable packaging division with your typical strap type (PP or PET), band thickness, and industry use. We will include a complimentary secondary battery pack and optimization settings with your JD13/16 factory-direct quote today.
