Skip to content Industrial shrink wrapping machine for stable film sealing and package tightening. Fits various‑size goods, easy operation and routine maintenance. Reliable wrapping solution for factory production lines, with practical after‑sales technical support available.

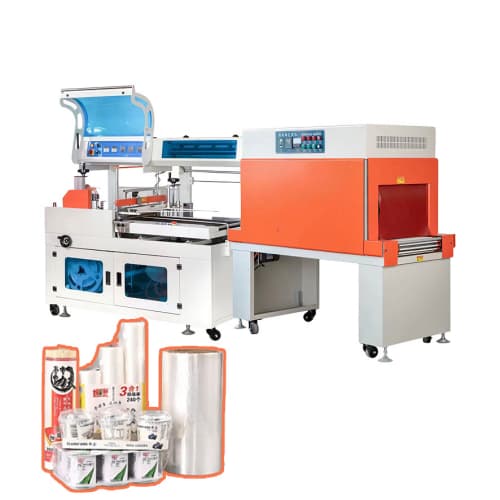

Streamline your batch packaging with our high-performance Automatic L-Bar Sealer and Shrink Tunnel System. Specially engineered for industries requiring pristine product presentation—such as stationery, cosmetics, food, and metalware—this system creates a crystal-clear, protective POF film wrap around your goods. The dual-component setup integrates a precision L-bar sealer (15-25pcs/min) with a high-efficiency shrink tunnel (0–15 m/min variable speed), achieving rapid thermal tightness without wrinkling.
By incorporating both horizontal and vertical photoelectric optics, the machine overcomes the common industry headache of misfeeding small or low-profile items. Simply connect it to your existing conveyor line to transform your packaging workflow into a fully automated, continuous sealing and shrinking operation.
| Parameters | Sealing & Cutting Unit | Shrink Tunnel |
|---|---|---|
| Machine Size (L×W×H) | 1685 × 828 × 1480 mm | 1300 × 700 × 1465 mm |
| Max. Packing Size | (L) ≤ 500 * (W) ≤ 430 * (H) ≤ 200 mm | (L) 700 * (W) 350 * (H) 200 mm |
| Max. Sealing Size | (L) 550 * (W) 450 mm | — |
| Packing / Conveyor Speed | 15‑25 pcs/min | 0‑15 m/min, stepless speed regulation |
| Power & Voltage | 2.5 kW / 1PH 220V 50Hz | 9 kW / 3PH 380V 50Hz |
| Air Pressure | 6‑8 kg/cm² | — |
| Film Material | POF Eco‑Friendly Shrink Film | POF Eco‑Friendly Shrink Film |
