Intelligent robot palletizer for automated stacking of cartons, bags and barrels on pallets. Flexible programming, stable high-speed stacking, saves labor cost, seamlessly connects with front-end packaging machines.
High Degrees of Freedom & Trajectory Flexibility: Engineered to execute any complex motion path or spatial angle, allowing smooth transition and adaptive placement for distinct sorting patterns.
Micro-Level Positioning Accuracy: Delivers an exceptional repetitive positioning accuracy of up to $\pm 0.02\text{ mm}$, ensuring tight, stable, and perfectly aligned pallet layers to eliminate transport shifting.
Fail-Safe Power Off Protection: Integrated with a responsive safety brake mechanism that locks the robotic arm instantly during sudden power failures, preventing any structural damage or product dropping.
Rapid ROI & Intuitive Programming: Supports both hands-on teaching programming and intelligent automatic programming. Simple operation curves lower user thresholds, ensuring a short cost recovery period for factories.
| Specification | Technical Data |
|---|---|
| Maximum Payload | 50 - 680 kg |
| Positioning Accuracy | ±0.02 mm |
| Processing Capacity | 300 - 750 pcs / h |
| Palletizing Layout | 1 - 15 pcs / layer |
| Applicable Pallet Sizes | 1.2 × 1.2 m / 1.4 × 1.4 m (Wood, plastic and other materials) |
| Transportable Objects | Cartons, turnover boxes, woven bags and other items |
| Programming Modes | Teaching programming or automatic programming |
| Control Mode | Communication control between computer and controller |
| Air Pressure Req. | 0.4 – 0.6 kg/cm³ (Only for material grabbing & positioning) |
| Power Supply | 380V, 50Hz or 60Hz |
| Body Size / Weight | 2100L × 2600W × 2500H mm / Approx. |

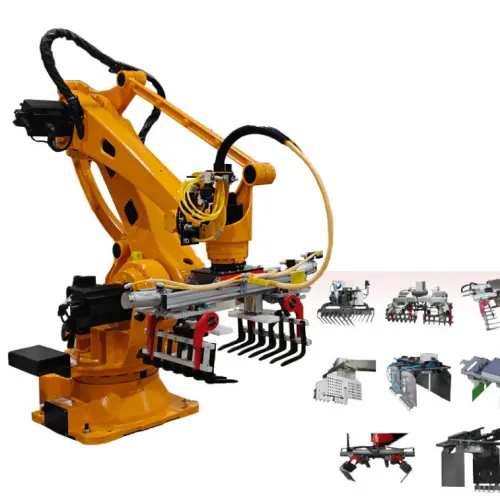

Equipped with quick-change modular end-effectors (grippers, suction pads, or clamps), this system adapts perfectly to:
