Orbital stretch wrapping machine, orbital film wrapper dedicated for tubes and profiles. Provides consistent stretch film coverage for long‑shaped workpieces. Stable circular wrapping motion, adjustable wrapping speed, easy integration into existing production lines. After‑sales technical support offered.

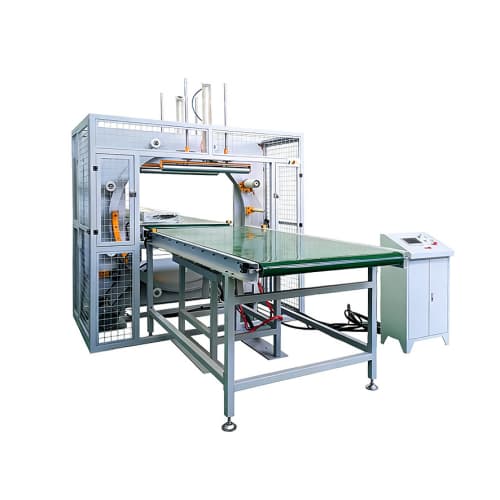

The S300 Orbital Film Wrapper is built specifically for wrapping tube bundles, aluminum profiles, and plastic extrusions. Operating at rotation speeds up to 100 rpm, it ensures tight, uniform stretch film wrapping to shield long goods from dust, moisture, and transport damage during storage and transit.
Profile-Tailored Efficiency: Handles profiles and tubes within 120mm–200mm widths and length over 400mm.
Intuitive Operation: PLC system with an interactive touch screen makes conveyor speed (5-8m/min) and wrapping tension easy to adjust.
Durable & Safe: Built to European safety standards with CE certification, providing reliable protection for everyday high-volume production.
| Parameters | Technical Data |
|---|---|
| Model | S300 |
| Revolving Speed | 100 rpm |
| Transport Speed | 5‑8 m/min |
| Wrapping Range | Width 120‑200 mm | Min Length >400 mm |
| Motor Power | Main 0.75kW | Conveyor Line 2×0.4kW |
| Dimensions | 5600 × 1270 × 1350 mm |
