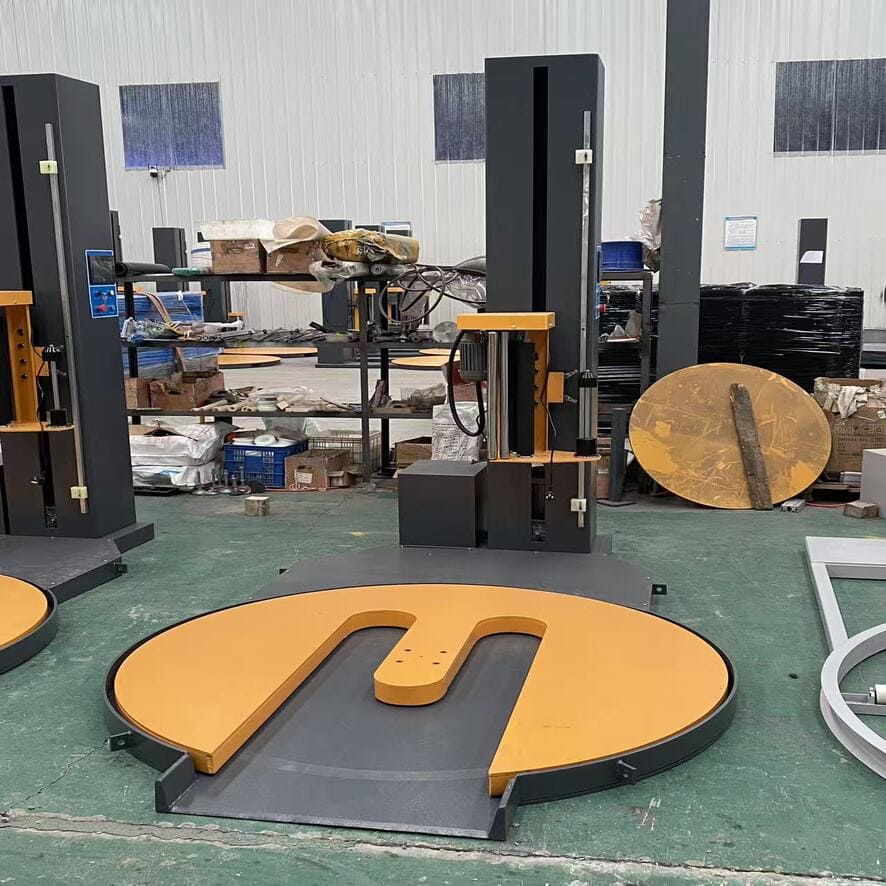

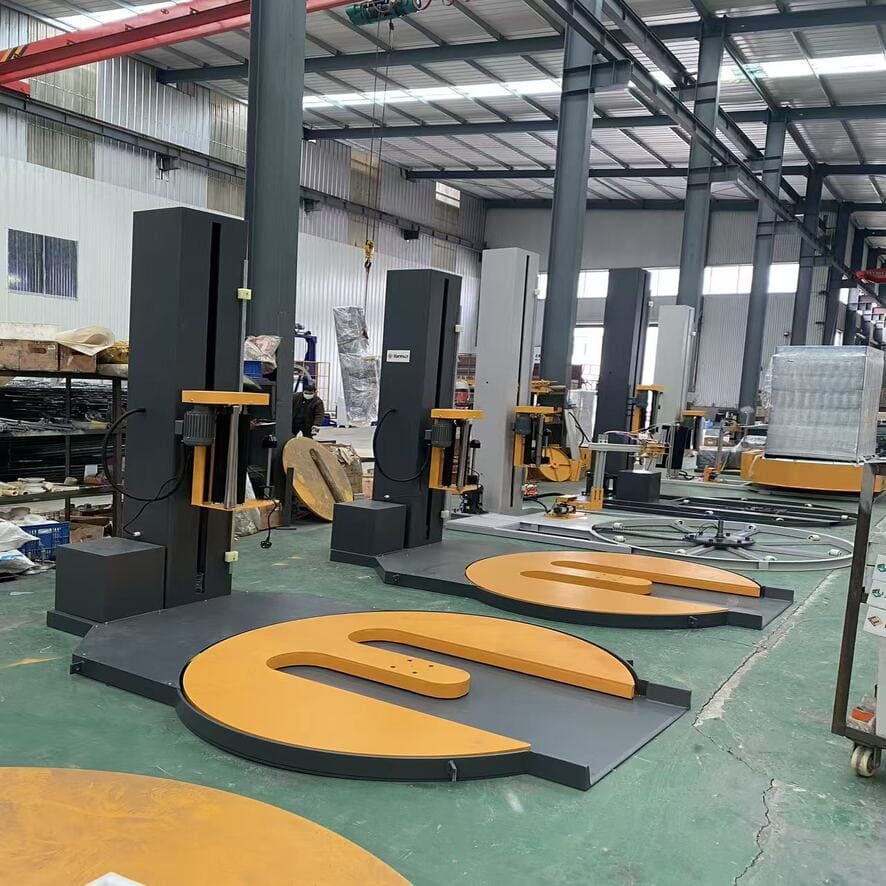

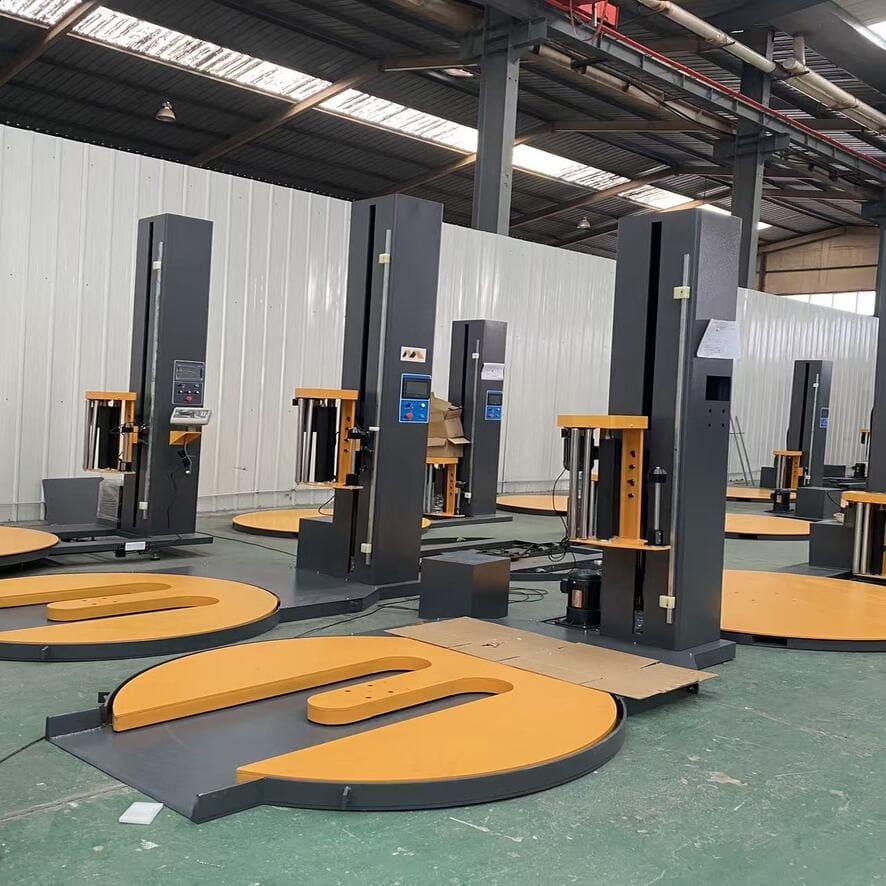

Skip to content Our Shunin M Type pallet wrapping machine redefines durability in low-profile packaging. Featuring an ultra-low 78mm turntable height, it allows hand pallet jacks to slide loads into the U-shaped slot at near floor-level—zero ramps or pits needed. Engineered with premium PLC control and backed by an industry-leading 2-year warranty, this machine is built for a long service life in high-frequency warehouse environments.
Floor-Level Loading: With a turntable height of just 78mm, operators can roll standard 1200mm*1200mm pallet loads straight into the machine using regular hand pump jacks without encountering steep inclines.
1650mm Heavy-Duty Turntable: The standard 1650mm diameter offers ample clearance, with 2000mm options available to comfortably accommodate oversized or irregular cargo stabilization.
Tailored Weight Options: While the standard model masterfully handles 1000kg (1 Ton) warehouse loads, we offer upgraded 2500kg and 3000kg (3 Tons) capacities to meet heavy industrial demands.
Rigorous Factory Testing: Weighing a solid 650 KG, the rigid mechanical foundation prevents structural twisting during its 3-12 rpm high-speed rotation, ensuring the machine's signature long service life.
2-Year Risk-Free Protection: We back our engineering with a comprehensive 24-month warranty, far exceeding the standard 1-year industry norm.
Proactive Lifecycle Support: Every single unit comes with an official machinery test report and video outgoing-inspection. Should you need support, our team provides online assistance, video technical guidance, and free spare parts during the warranty period.
| Technical Specifications | ||
|---|---|---|
| Engineering Attribute | Specification Data | Buyer Value |
| Product Type / Model | M Type Pallet Wrapping Machine | Specialized U-shape slot, zero ramps needed |
| Turntable Height | 78 mm | Ultra-low profile for easy hand jack entry |
| Turntable Weight Capacity | 1000 kgs (2500, 3000 kg available) | Scales up from standard logistics to heavy industry |
| Turntable Diameter | 1650 mm (2000 mm available) | Accommodates standard & oversized industrial pallets |
| Max Load Size (LWH) | 1200 * 1200 * 2400 mm | Expansive vertical wrapping capacity for high loads |
| Core Components | Advanced PLC Control Panel | Fully customizable winding layers and wrapping speeds |
| Turntable Speed | 3 - 12 rpm (Rotations Per Minute) | Inverter-controlled soft-start for cargo safety |
| Warranty Protection | 24 Months (2 Years) | Long-term investment safety and low cost of ownership |
| Machine Weight | 650 KG | Solid steel construction ensures long service life |
