Model number: T1800FZ-TL Power: 2.0Kw

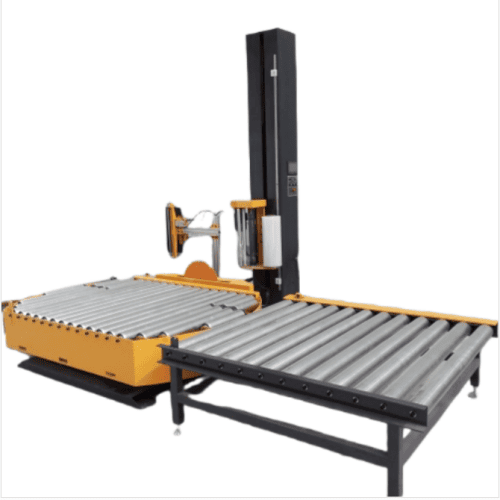

Fully automatic pallet wrapper for mass warehouse logistics. Auto film cutting and clamping, adjustable wrap layers, stable load fixing, works seamlessly with assembly and conveyor lines.
high-performance packaging system specifically designed to adapt to automated assembly line operations. Built for modern high-output enterprises, it bridges the gap between palletizing and final warehousing. By integrating powered roller conveyors directly onto a heavy-duty 2-ton capacity turntable, this machine automates the entire process of pallet feeding, film clamping, multi-layer wrapping, cutting, and wiping, reducing labor intensity to zero.
| Technical Specifications | |
|---|---|
| Technical Parameter | Specification Value |
| Turntable Diameter | 1650 mm (Integrated with rollers) |
| Turntable Weight Capacity | 2000 kgs |
| Packing Efficiency | 20 - 40 load / h (Based on actual cargo size) |
| Turntable Speed | 3 - 12 rpm, adjustable frequency |
| Turntable Height | 93 mm |
| Power Supply | 220V, 50HZ, 1 Phase |
| Total Power | 1.5 kw |
| Machine Dimensions | 2745(L) × 1650(W) × 2863(H) mm |
| Machine Weight | 700 kgs |

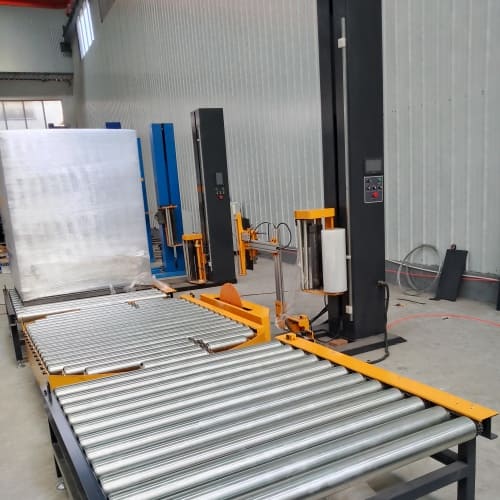

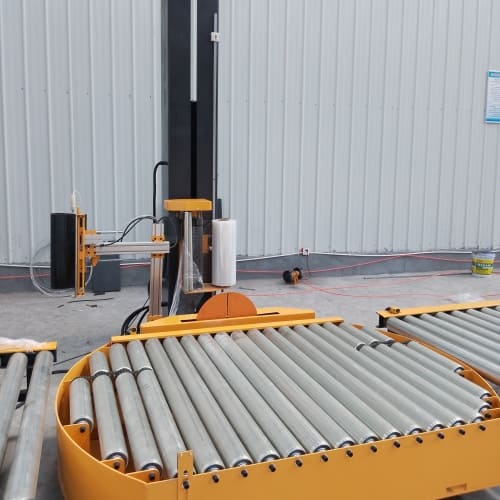

Designed to adapt perfectly to continuous industrial workflows, the wrapper communicates directly with upstream equipment (like case erectors, palletizing robots, and strapping lines). When a pallet reaches the station, the integrated powered roller conveyor table smoothly moves it into position, activates the wrap sequence, and dispatches the finished load without a single human touch.

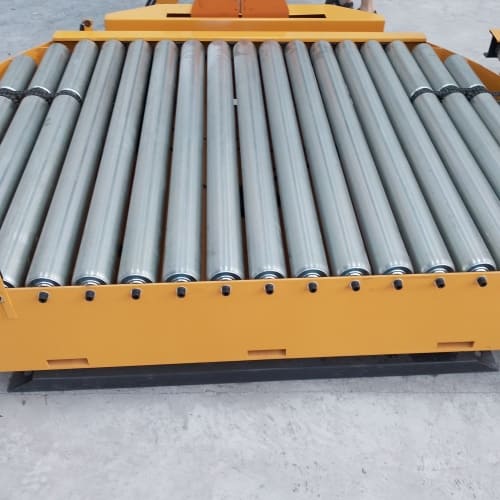

The low-profile 93mm tall turntable boasts a massive 2000kgs weight capacity, reinforced with industrial-grade supporting bearings to handle heavy building materials, liquid containers, or stacked electronics. With a variable speed range of 3-12 rpm, operators can fine-tune the rotation pace via PLC to match the delicate or top-heavy nature of specific loads.
Eliminating the bottleneck of manual operations, the machine features an automated film processing arm. At the end of each cycle, a pneumatic mechanism cuts the film cleanly and applies a localized wipe to ensure the film tail sticks flawlessly to the pallet, avoiding any loose film strands that could catch on automated warehouse forklifts or racking.
High-Throughput Logistics Sorting: Delivers reliable 20-40 loads/h pacing to keep up with high-speed fulfillment hub sortation.
Beverage & Chemical Manufacturing: Perfectly matches heavy pallet demands for mineral water, beverages, laundry detergents, and raw material sacks.
