Collaborative palletizing robot is used to automatically stack cartons, bags, or packaged products onto pallets, improving palletizing efficiency and reducing manual handling, suitable for warehouse and end-of-line automation.

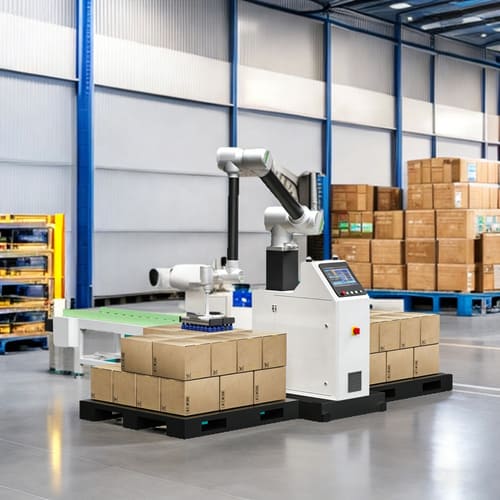

The Collaborative Palletizing Robot shown in image_7c9dde.jpg is a next-generation intelligent end-of-line packaging solution designed for flexible manufacturing. Combining a highly sensitive multi-axis motion arm with a low-power control cabinet, this system automates case stacking with precision. Unlike bulky traditional industrial robots, its compact footprint and built-in safety sensors allow it to work safely alongside human operators without massive safety enclosures, minimizing plant floor rearrangement.
| Technical Specifications | |
|---|---|
| Parameter Item | Technical Specification |
| Product Name | Collaborative Palletizing Robot |
| Palletizing Speed | 6 - 8 Pcs / min |
| Power Consumption | 0.33 Kw (Ultra-low) |
| Power Supply | 220V / 50Hz |
| Working Radius | 1700 mm |
| Machine Height | 1800 mm - 3000 mm |
| Machine Width | 3600 mm |
| Footprint Base | L 1505 × W 1716 mm |
| Standard Pallet Size | 1200 mm × 1200 mm × 140mm |

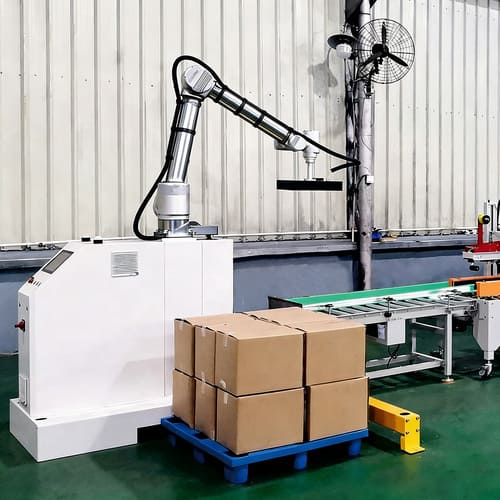

The robot utilizes a multi-degree-of-freedom Motion Axis mounted on a stable frame assembly. The configurable End Effector (supporting vacuum suction arrays or mechanical grippers) tracks the conveyor table seamlessly to lift, rotate, and stack regular or irregular cartons with flawless
Engineered with high-efficiency servo joints, the entire system draws only 0.33 Kw of power under full-load operation. Running on standard 220V/50Hz factory power, it reduces utility costs drastically compared to traditional $3\text{-}5\text{KW}$ heavy-duty industrial robotic arms.
Despite its space-saving base footprint (1505*1716mm), the robotic arm boasts an expansive 1700mm working radius and an adjustable machine height reaching up to 3000mm. This allows it to handle standard 1200*1200mm pallets and build tall, stable pallet stacks easily.
Food and Beverage: Palletizing bottled water, canned goods, and boxed snacks under high hygienic standards.
Daily Chemicals: Automatic sorting and stacking of heavy liquid detergents, cosmetic boxes, and personal care products.
Electronics Industry: Gentle, vibration-free handling of precision electronic components and appliance master cartons.
Logistics Industry: High-frequency, tireless sorting and pallet building in warehouse dispatch centers.
Ready to transform your production end-line into an unmanned powerhouse?
Provide our technical team with your carton dimensions, maximum case weight, and preferred pallet stack patterns. We will configure the ideal vacuum gripper and programming profile for your robot.
