Carton box folding machine is used to automatically fold and form cartons, improving packaging efficiency and reducing manual labor, suitable for production lines and warehouse shipping operations.

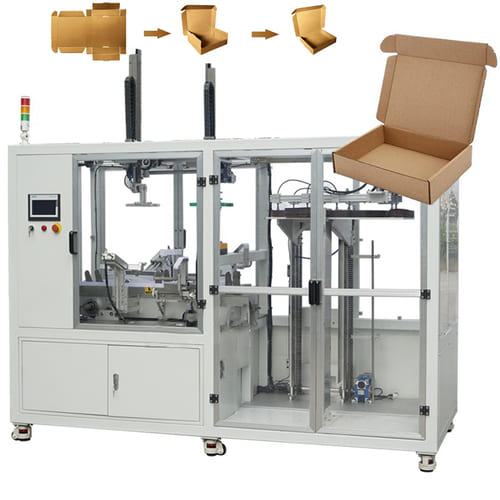

The Automatic Box Folding Machine is a premium automated solution specifically engineered for erecting flat mailer boxes (aircraft boxes) without the need for tape or glue. Utilizing a high-precision pneumatic stamping die and mechanical manipulator, the machine automatically transforms flat corrugated cardboard into structurally rigid, self-locking boxes. It is widely adopted in high-volume e-commerce warehouse dispatching and electronics packaging lines.
| Technical Specifications | |
|---|---|
| Parameter | Specification |
| Folding Speed | 900 - 1200 pcs / h |
| Folding Box Size | L (120-300) × W (90-230) × H (30-80) mm |
| Equipment Size | L1800 × W1300 × H1800 mm |
| Supply Gas Source | 600 NL/min, 0.6 - 0.8 MPa |
| Power Supply | 220V, 60HZ, 1.2 KW |
| Machine Weight | 780 kg |
Driven by a robust pneumatic system (0.6-0.8MPa), the achieves a continuous folding speed of up to 1200 pieces per hour. This effectively replaces the labor of 4-6 manual packaging operators, offering immediate ROI for logistics hubs.
The machine handles a wide range of popular mailer box sizes, from small jewelry/cosmetic packaging (120mm length) up to larger apparel boxes (300mm length). Operators can scale the forming fixtures and width mechanisms via simple handwheel indicators for fast tool-less changeover
The mechanical folding fingers ensure every corner crease is perfectly aligned. By folding ears and locking them into precut slots, it creates a rigid container without utilizing adhesive tapes or hot-melt glue, helping brands comply with international green packaging standards.
Cardboard Loading: Manually stack flat cardboards into the horizontal storage silo.
Manipulator Feeding: The vacuum material-taking manipulator accurately picks and places the board.
Stamping Die Forming: The precision stamping die presses the cardboard down to fold the main frame.
Inside Folding Mechanism: Automated side ears and flaps fold inward to achieve a perfect self-locking structure.
Finished Output: Automatic out-of-box ejection of the finished mailer box to the conveyor.
