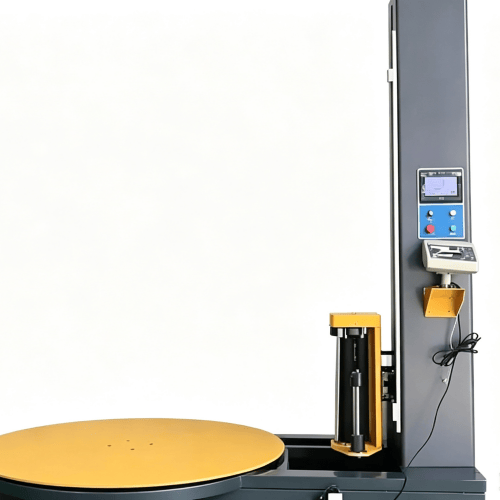

Automatic pallet wrapper fitted with scale system, combines stretch packaging and weight measurement to simplify logistics inventory work.
Designed for continuous industrial duty, this Automatic Pallet Wrapper protects both your operators and your cargo. Beyond providing live weight data for loads up to 2000kg, this unit incorporates automatic photoelectric height sensing, a double-chain lifting film carriage, and active safety door interlocks to streamline daily packaging routines.
Photoelectric Height Sensing: Automatically detects variable pallet height up to 2000mm, ensuring full top-to-bottom coverage without manual adjustments.
Safety Door Interlock System: The film carriage door is equipped with an auto-cutout safety switch. Opening the door immediately pauses operations to protect operators during film roll changes.
Double Chain Lifting Reliability: Dual chain drive system ensures smooth and steady vertical movement of the film carriage, avoiding tilting or binding under heavy use.
Reinforced Local Wrapping & Alarm Logic: Programmable PLC controls allow operators to apply extra film reinforcement at fragile pallet zones, with automatic check-and-stop function if the stretch film breaks.
10-Year Built Design: Heavy industrial build backed by over 10 years of manufacturing refinements for long-term operational stability.
| Parameter / Feature | Specification Details |
|---|---|
| Max Loading Capacity | 2000 kg (Integrated Weighing Turntable) |
| Packing Height Range | 500‑2000 mm (Auto‑Sensing) |
| Turntable Speed | 3‑12 rpm (Inverter Speed Control) |
| Film Carriage Structure | Power Pre‑Stretch (Up to 250%), Double Chain Lift |
| Safety System | Interlocked Safety Door (Auto‑Stop on Open) |
| Sensors & Controls | Photoelectric Height Sensor, PLC HMI Panel |
| Applicable Film | LLDPE Stretch Film (Thickness: 17‑35μm, Width: 500mm) |
| Machine Dimensions | W2000 × D2745 × H2345 mm |
| Machine Power | 1.5 kW |
Suitable for ceramics, electronic appliances, building materials, and glass products where pallet stability, precise weight records, and operational safety are critical.
